The design of the ballastless track system in the turnout area faces a special challenge, for which only a few ballastless track systems provide a proper solution. With RHEDA 2000®, RAILONE provides an integrated system not only for tracks but also for turnouts. In turnout areas we use the monoblock sleeper GWS 05, which, like the B 355 sleeper, is equipped with a lattice girder.

Properties:

Continuous system: Pre-stressed mono-block sleeper with a lattice girder
Variable: adjustable length and variable positioning of fixing points and inserts
Reliable: dimensioned for all occurring conditions (transport, installation and operation)
Simple: easy handling during transport and installation
Flexible: solutions for passenger traffic with 350 km/h and 22.5 t axle load as well as for freight traffic with up to 32.5 t axle load

How you benefit:

Same system principle as in the track: concrete sleeper in in-situ concrete
Logistics and installation: easy handling during transport and installation due to reduced weight
Safety: Millimeter-accurate definition of the position of the fastening points at the factory

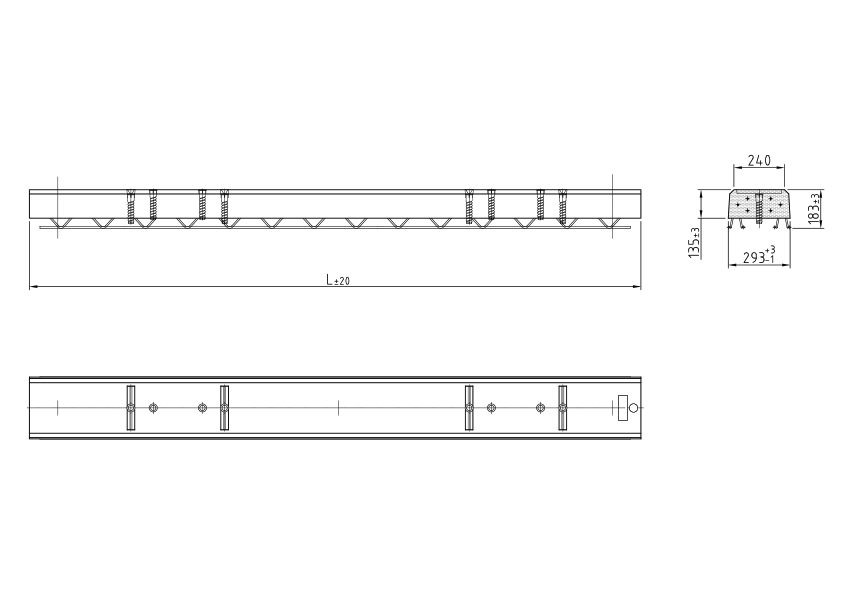

GWS 05 – SYSTEM CONTINUITY ALSO IN TURNOUTS
